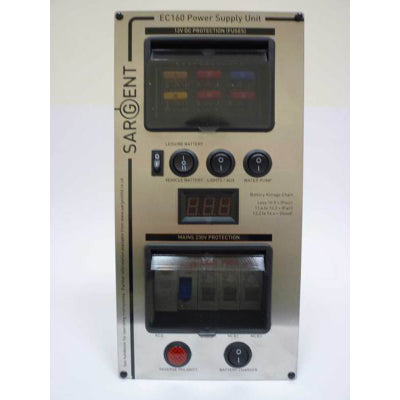

This sargent ec160 power supply unit is the ideal unit for a self-build campervan which provides both 12v and 240v power supplies. it is easy to install and operate courtesy of sargent's simple design. *230v ac: • 16a input via wired 2m lead • Rcd protected with reverse polarity indication • Built in 150w 13.8v fixed voltage battery charger with on/off switch • 3 x 10a mcb outputs via quick fit connector blocks *12v dc • 2 x 15a battery inputs via screw terminal block • 5 x outputs via screw terminal black • Pump output via pump switch & 5a fuse • Lights output via lights / aux switch & aux 10a fuse • Permanent output via 5a fuse • Fridge output va 15a fuse • Built in split charge relay (configurable) • Built in emc isolation relay (configurable) • Digital voltmeter with on/off switch • Dimensions: front panel: 300 x 150mm. panel cut out 285 x 132mm x depth 200mm Call Us Email Us
