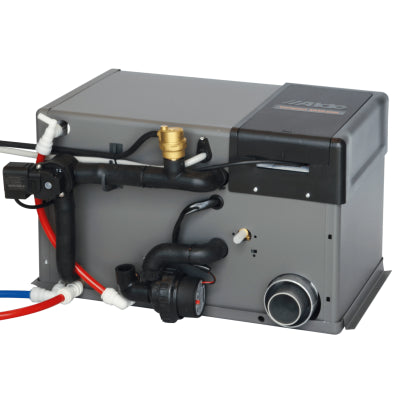

Alde 3030 Compact HE Central Heating system

New Alde Compact 3030, with even more heating and hot water comfort Potential for a 2-zone system (must be supplemented with an option card to control multiple circulation pumps). 20% larger water heater. Now 10 litres. Simpler, more modern user interface in the control panel. Upgraded Alde Intelligent Climate Technology (ICT). Alde Compact 3030 internal heat exchanger consists of three concentric cylinders; the combustion chamber, the central heating cylinder and the hot water cylinder. The combustion chamber is made from aluminium, and is divided into two halves by a baffle plate, with the burner head located in the top half, and the flue gases venting through the bottom half. The combustion assembly is fixed to the end of the internal heat exchanger. It consists of the burner, combustion fan, gas valve, air intake and exhaust ducts, and gas line. Two electric heating elements are sealed inside the central heating cylinder, one for 1 kW, one for 2 kW. All system connections are on one side, allowing installation in the smallest of spaces, and the flexible flue means you can position the boiler where you want. Supplied with side mounted flue kit. ** please note that this system does not come with the Control Panel, if this is required please order 3030-112 seperatley** Call Us Email Us
